| Test Properties | JG/T 193-2006 National standard JG/T 193-2006 |
Enterprise Standard | Inspection standards |
|---|---|---|---|
| Geosynthetic Clay Expansion index | ≥24 ml/2g | ≥25ml/2g | ASTM D5890 |
| Mass Per Unit Area(g/m2) | ≥4800g/m2 | ≥4800gm2 | ASTM D5993 |
| Tensile Strength | ≥6kN/m | ≥8KN/m | ASTM D4632 |
| Maximum load elongation | ≥10% | ≥10% | ASTM D4632 |
| Permeability | ≤5×10-9 | ≤5×10-9 | ASTM D5084 |
| Moisture content | ≤15% | ≤15% | ASTM D4643 |
| Peel Strength | ≥40N | ≥65N | ASTM D4632 |
| Hydrostatic Pressure | 0.4Mp | 0.4-0.6MP | ASTM D5891 |

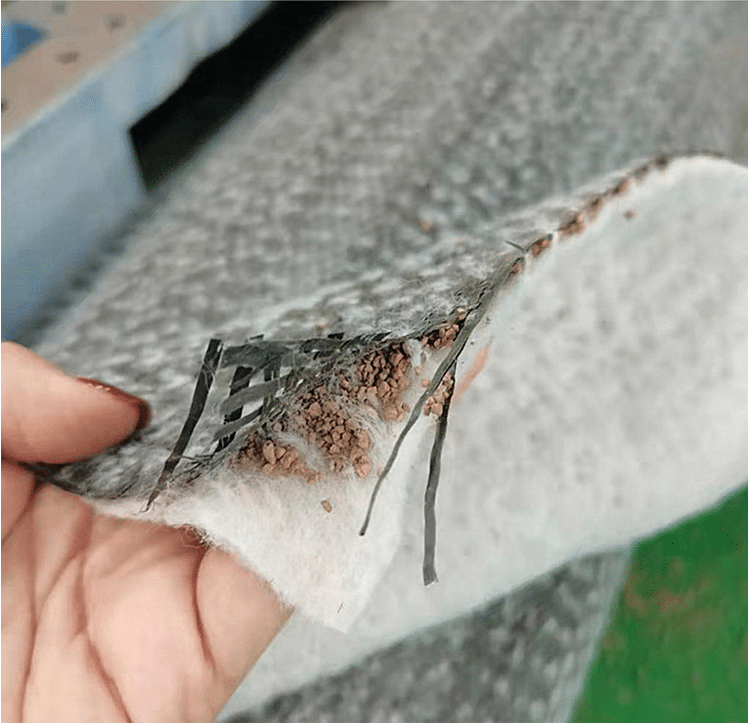

GCL sodium bentonite geosynthetic clay liner is a new type of geasynthetic material, and
it can be divided into needle-punctured GCL(GCL-NP) and needle-punctured coated GCL
(GCL-OF). GCL is a kind of bentonite seepage-proofing mat needle-punctured through
filling sodium bentonite between woven geotextile and non-woven geotextile. Among which
tiny fiber spaces can be formed to prevent bentonite particles to move to a direction. It can
form glue-type water-proofing layer to prevent water leakage. Woven geotextile of 120g/㎡f
and non-woven geotextile of 220g/ ㎡’ are applied in this kind of GCL.
Mass per unit of GCL sodium bentonite clay liner can be divided into: 4000g/㎡,
4500g/㎡,5000g/㎡, 5500g/㎡, etc. The length of the product is 30m, and the width is
6m.
